350W 36V/48V DC 6 MOFSET brushless controller, BLDC controller E-bike / E-scooter / electric bicycle Accessory speed controller

Black Arabic Moroccan Evening Dresses Party Elegant for Women Celebrity Chiffon Crystal Dubai Caftans Formal Gowns 2019 Cape 2018 Champagne Full Lace Off the Shoulder Prom Dresses Mermaid Short Sleeves Covered Button Back Dress Evening Wear Cheap dress 2018 Burgundy Long Sleeve Evening Dresses Long vestido de festa longo Appliques Elastic Satin Women Formal Mermaid Evening Dress Bead Evening Dresses Women robe de soiree Mermaid Evening Dress Sleeve Long Vestidos De Festa Evening Gowns Bride Elegant Saudi Arabic Prom Gowns abiye abendkleider Appliques Backless Long Evening Dresses A Line Puffy Vintage robe de soiree Saudi Arabic Long Black Mermaid Evening Dress with Feather 2019 Elegant Kaftan Dubai Moroccan Formal Prom Party Dresses Beaded Dubai Wine Red Mermaid Long Evening Dresses 2019 Luxury Beaded Crystal Short Sleeves Arabic Evening Gowns Overskirt Prom Dress Custom-made 2019 Burgundy Mermaid Evening Dresses Long Satin Women golden Appliques Formal Party Gown Prom Dress Robe de Soiree Short Sleeve Mermaid Crystal Line Abendkleider Evening Dresses 2019 Scoop Neck Shiny Black Dubai Formal Prom Gowns Vivian's Bridal Muslim Removeable Cape Evening Dress Sexy Illusion Mesh Sequin Lace Appliques Green Elegant Party Dress SoAyle Mermaid Evening Dresses Bee Brooch Sexy Prom Dresses Black Splice High Neck Long Sleeves Evening Dress 2019 Custom Made Leeymon Custom Made Black Sexy V Neck Velvet Evening Dresses Backless Elegant Evening Gowns 2019 longo vestido de festa Prom Pretty Champagne Evening Dresses With Illusion Full Sleeves Coloful 3D Flower A-line Tulle Prom Gowns Formal Dress Abendkleider Navy Blue Evening Dresses Long Formal Mermaid Evening Gowns Women Scoop Beading Women Evening Dress vestidos de fiesta Gown CEEWHY V-Neck Luxury Beaded Evening Dresses Long Dresses Evening Gown Kaftan Dubai Vestidos de Fiesta de Noche Abendkleid Spanish Evening Dress vestido de festa abendkleider abiye gece elbisesi Floral Evening Gowns Removable Overskirt robes de soiree Luxury Black Gold Glitter Mermaid Long Sleeves Evening Dress 2020 Saudi Arabia Dubai Moroccan Sexy Formal Prom Party Gowns Sexy Purple Luxury Formal Evening Gowns Women Long Sleeve Two Piece Prom Dress Crystals Split Side Vestidos de Fiesta Longa Special Orange Mermaid Evening Dresses Shoulder Sleeve Arabic Dubai Heavy Crystals Prom Party Gown Robes De Soiree Longue 2019 SuperKimJo Robe De Soiree 2019 High Neck Lace Applique Evening Dresses Ankle Length Feather Long Sleeve Formal Dress Abendkleider Dubai Evening Dresses Floor Length Embroidery Evening Gown Vintage Evening Dresses Beaded Green Prom Dresses 2019 Silver Sequined Luxury Evening Dresses Sweetheart Mermaid Red Carpet Gowns Back Zipper With Detachable Train Evening Gowns Dress CEEWHY Abendkleider Dubai Luxury Sexy Sleeveless Evening Dresses Long Crystal Beading Mermaid Evening Gowns 2019 Prom Dresses Beauty Emily Stain Luxury Beads Sexy Green Evening Dresses 2018 O neck Long Party Prom Dresses Plus Size Party Gowns modabelle Black Evening Dresses With Long Cape Abito Da Sera Lungo Long Sleeve Arabic Dresses Evening Gowns Saudi Arabia CEEWHY Red Abendkleider Dubai Women Evening Dress Long Sleeve Embroidery Tassel Evening Dresses Beaded Formal Dresses Abiye 2018 Two Pieces Gown Prom Dresses Long with Crystals by Hand Backless Tulle Formal Evening Party Dress 100% Real

Type Controller

Brand Name ANNOYBIKE

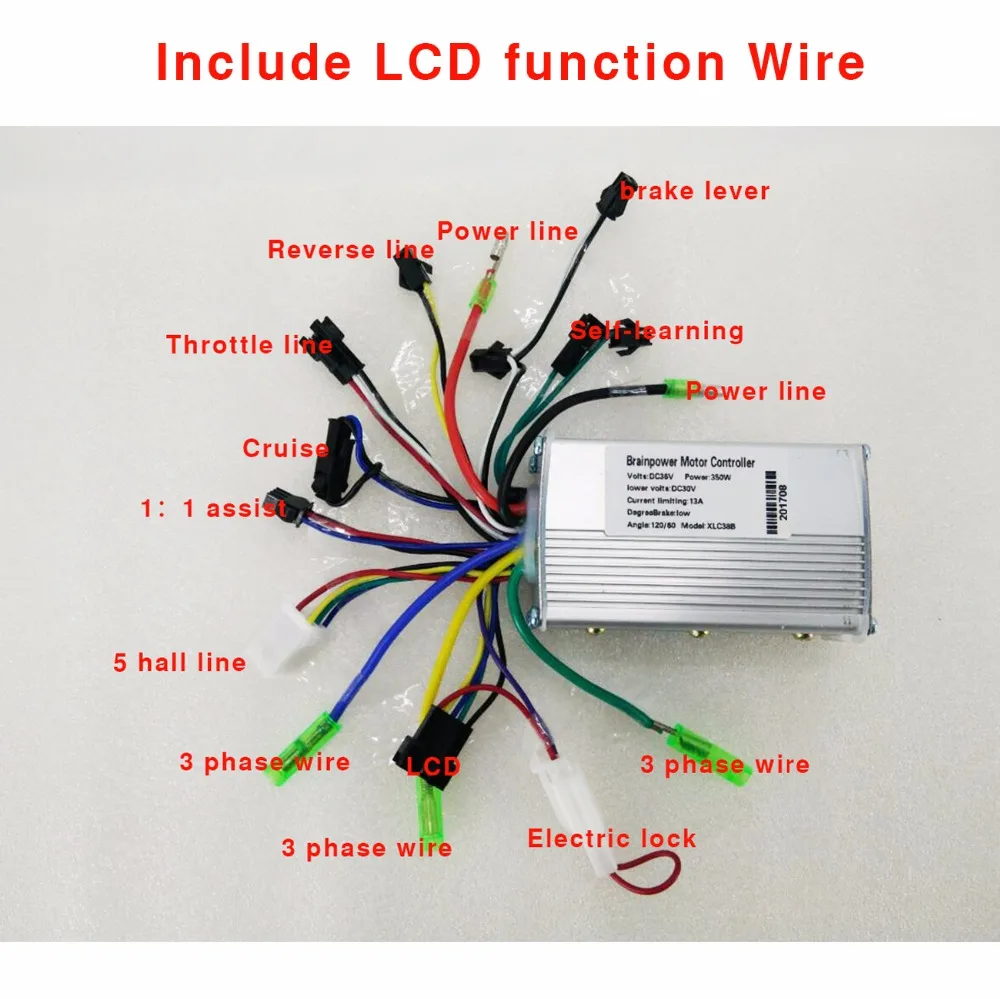

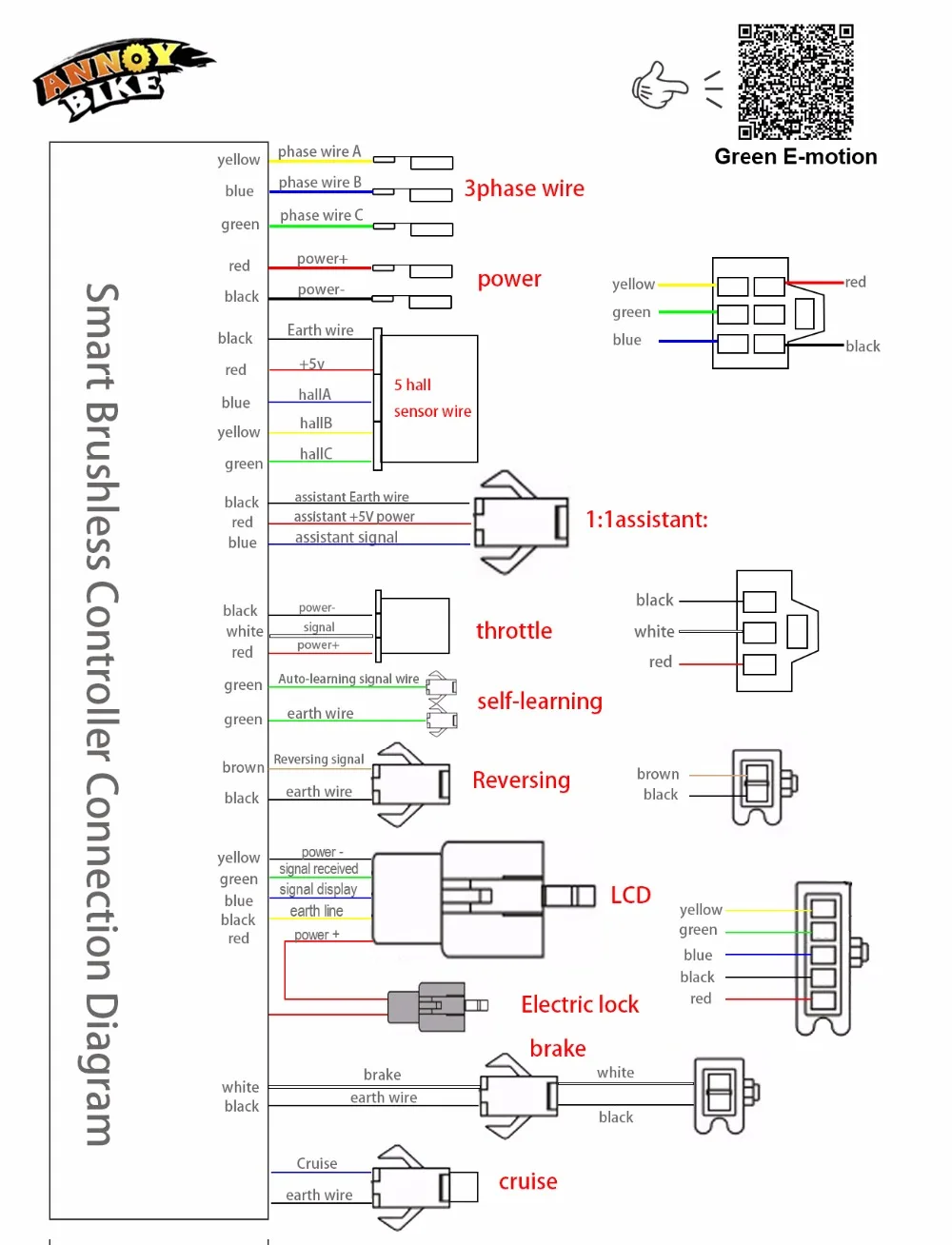

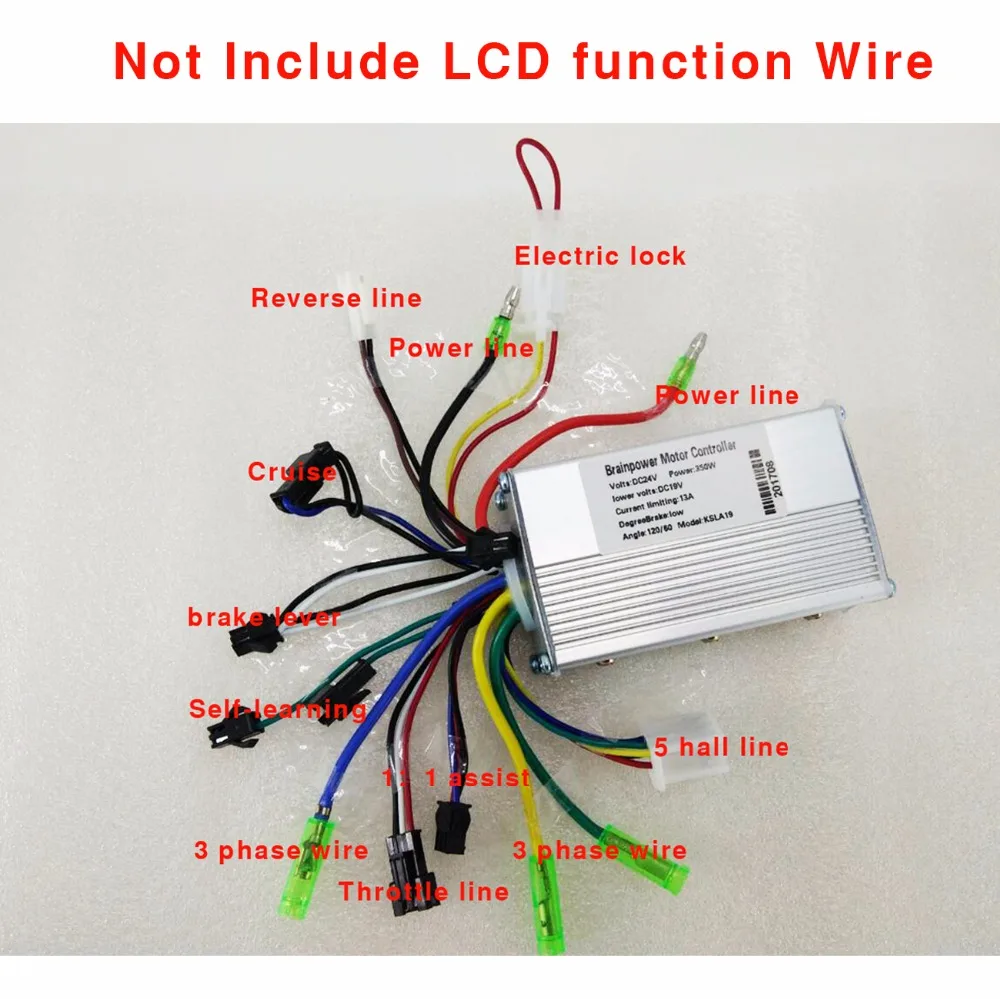

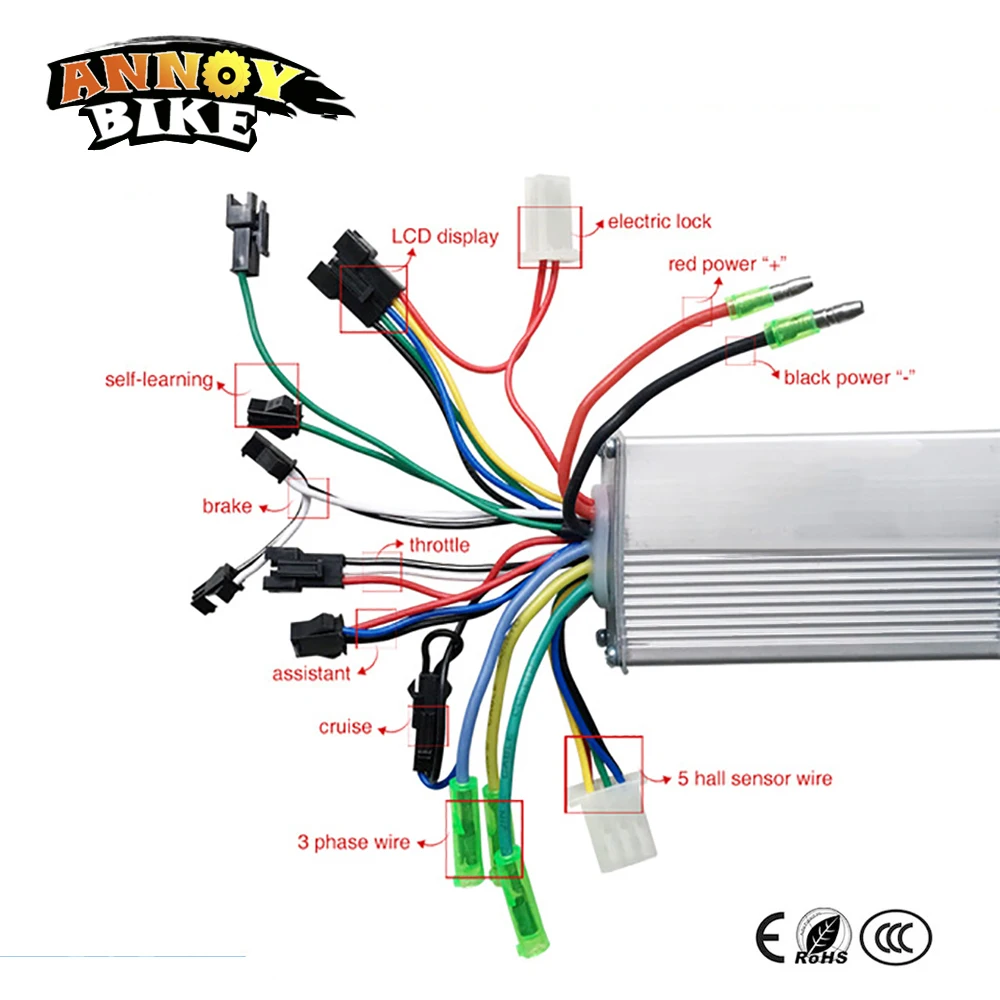

Specification: Ratedcoltage 36V 48V Ratedcurrent 7A 6A Lowvoltageprotection DC29±0.5V DC39±0.5V Maximumcurrent 14±1A 13±1A Speedset 1-4.2V 1-4.2V Brakeinput Low-level Low-level Features: 36V or 48V Universal (support both voltage) This controller can working without the PAS(Pulse Padel Assistant Sensor) SquareWave Controller (more stable, high efficiency,low current consumption, long life) Support hydraudic brake sensor or brake sensor connector Support LED Control Panel or LCD Control Panel Support 24V 36V or 48VLight Control Support speed limit to 70% Support Cruise Function Support speaker and led righ Specification: 1. The self-learning wires: You can connect the two green wires and then teh motor can match it with the accessories moreintelligently. 2. TheAssistance wires: You can connect it with yourMagneticpowersensor,Whenyoutrainwithafootpedal,themotorwillgiveyoua same power as the your foot gave. 3. The Reversing wires: If you have a throttle which have reversing function, you can connect the reversing wire and then the motor can have a reverse function. 4. The 1:1 assist function ：You can connect it withyourMagneticpowersensor,Whenyoutrainwithafootpedal,themotorwillgiveyoua same power as the your footpedal put out. A model: The controller with LCD wires B model: The controller no LCD wires Note: What's the defference of " with LCD wire" and" no LCD wire"? If there is a LCD wire oncontroller, you MUST to connect yourLCDdisplay. If you do not connect the LCD display, the controllerwill not be able to work. If there is not a LCD wire on the controller, you can use it without a LCD display. Please make sure whether do you need to LCD wire. ​And if you want to connect a LCD display, it is better to connect our professional matched LCD: http://www.aliexpress.com/store/product/the-LCD-display-for-electrice-bike-scooter/1656295_32601367516.html?spm=2114.12010610.0.0.47f579b1Ah2FZk http://www.aliexpress.com/store/product/BLDC-Controller-250W-350W-24V-36V-48V-DC-MOFSET-BLDC-Brushless-Motor-Controller-E-bike-E/1656295_32825213820.html?spm=2114.12010610.0.0.47f579b1Ah2FZk If you connect with the other LCD display, wecan not make sure you can use themsuccessfully. Controller wiring diagram for all functions,picture just for reference
